Graphical Tools#

Qt Enabled Shell#

Note

To use graphical tools from the Python command line make sure you have created a QApplication or else they will crash your shell.

You can either use IPython_:

user@computer$ ipython --gui=qt

or you can manually start a QApplication. In the python command line:

from qtpy import QtWidgets
app = QtWidgets.QApplication([])

Displaying images#

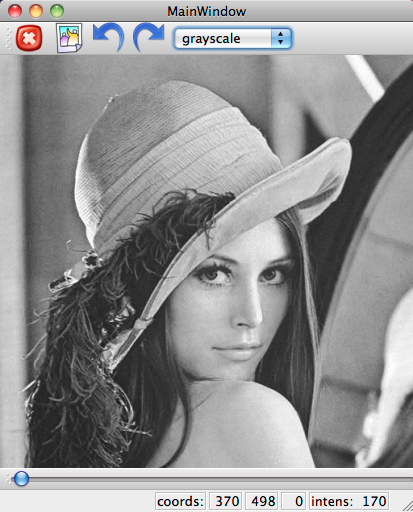

openalea.image.gui.display can be used for displaying a matrix as an image.

1from openalea.image.all import display
2w1 = display(im, title="An image")
../../_images/lena.png

In VisuAlea, the same function exits in the package openalea.image.gui. Let’s drag and drop the node display in the workspace.

Point Selection Tool#

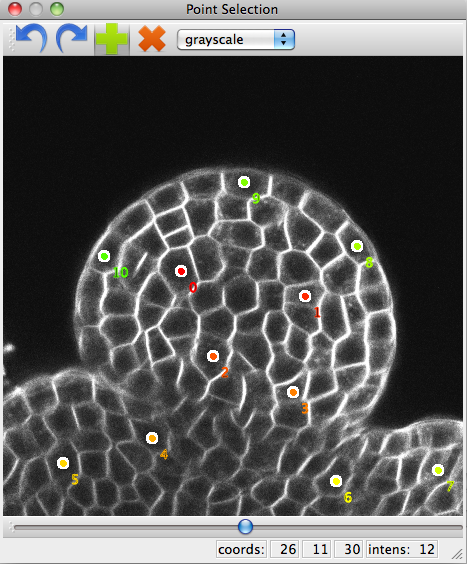

openalea.image.gui.point_selection.point_selection() is a graphical tool that lets you place points in an image. It naturally works for 2D but also for 3D by navigating through the slices.

1from openalea.image.all import point_selection
2ps1 = point_selection(im1)
../../_images/point_selection.png

Loading and saving points#

It is possible to load points from a text file and use them. The text file must look like this:

142.3 124.4 398.1
124.2 423.5 642.4
234.0 540.1 543.2
[...]

Note

If the image is 2D, leave out the third column.

Then load the file like this:

import numpy as np
pts1 = np.loadtxt("pts1.txt")
ps1.set_points(pts1)

The points from the PointSelection widget can be obtained with get_points():

pts1_bis = ps1.get_points()

They can then be saved .txt file with numpy.savetxt():

np.savetxt("pts1_bis.txt", pts1_bis)
